How to Determine the Right Tank Capacity for an Air Compressor
27 December 2024, Friday
Many applications can benefit from installing an air receiver tank to enhance the efficiency and performance of systems. Air compressors not only provide extra air on demand but also enable higher duty cycles and increased air power.
By storing the compressed air, they meet instant air demand and prevent the compressor from frequently starting. However, selecting the wrong tank capacity can lead to issues such as insufficient air pressure or excessive energy consumption. Determining the right tank capacity is crucial for reducing operational costs and ensuring smooth system operation.
Air Compressor Tanks
Piston air compressors use an air receiver tank to store compressed air and eliminate pressure fluctuations. Once the tank is sufficiently filled with air, tools or equipment can operate.
In many applications, these processes play a critical role because a consistent supply of adequate air pressure is essential for effective tool operation. However, using a tool depletes the air inside the tank, and operators may have to wait for the tank to refill before using compressed air again.
Properly sizing the air receiver tank for a piston air compressor can minimize such interruptions and reduce the downtime associated with tank refilling. Correct sizing ensures that the air pressure within the tank remains at an optimal level, allowing tools and equipment to operate more efficiently. This approach can enhance operational effectiveness across various scenarios, from industrial applications to workshop use.
Air Compressor Tank Sizing Based on Needs
| CFM Requirement | 1.25 Multiplier | 1.5 Multiplier | Recommended Tank Size |
|---|---|---|---|
| 20 | 25 | 30 | 30 gallons |
| 40 | 50 | 60 | 50-60 gallons |
| 65 | 81,25 | 97,5 | 90-100 gallons |
| 80 | 100 | 120 | 100-120 gallons |
Tanks for Rotary Screw Air Compressors
Rotary screw air compressors often do not require an air tank for many applications. These compressors provide a continuous, vibration-free air flow, which is particularly advantageous in industrial applications where a steady air supply is critical. However, air tank usage can still be an option in certain cases.
For instance, if the tool being used requires less CFM than the compressor produces, an air receiver tank may not be necessary. However, operators may opt for an air tank to support tools with higher CFM requirements occasionally. For example, an operator using a 1" impact wrench that routinely requires 40 CFM might benefit from this support.
Using an air compressor tank can effectively increase the compressor’s capacity and meet high CFM demands. However, not every situation requires the use of an air tank; it should only be considered for specific operational needs. Using an air receiver tank for a rotary screw air compressor is a decision that depends entirely on the application requirements and operator preference.

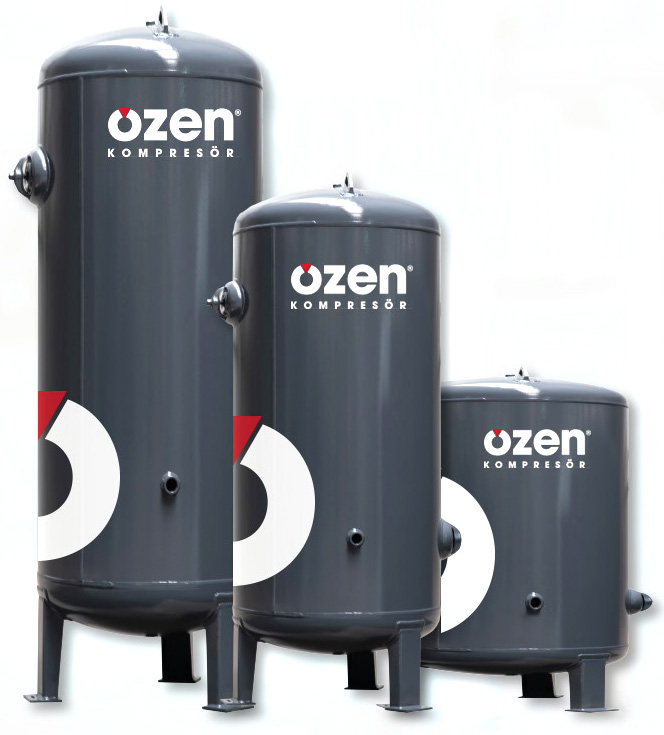

Air Receiver Tanks for Air Compressors
Air receiver tanks are critical components for ensuring the efficient and safe operation of air compressor systems. The proper sizing of the air receiver tank is a complex process for fixed applications and should always be carried out by a qualified engineer.
The sizing of tanks should be adjusted according to fluctuations in air consumption volume and pressure. Additional factors to consider include the compressor size, pipe or hose length, and the control system strategy (e.g., modulation or on/off control). An incorrectly sized air receiver tank can negatively affect system performance and increase energy consumption.
Selecting an appropriately sized air receiver tank ensures optimal system performance. These tanks help meet sudden air demands, reducing the load on the compressor and saving energy. In industrial settings, a properly sized air compressor tank allows production processes to continue seamlessly.
Formula for Determining the Correct Tank Size:
t = V (p1 – p2) / C pa
V: Receiver tank capacity (cubic feet)
t: Time for pressure to drop from high to low (minutes)
C: Required free air delivery (SCFM)
pa: Atmospheric pressure (14.7 PSIA)
p1: Maximum tank pressure (PSIA)
p2: Minimum tank pressure (PSIA)
PSIA: Absolute pressure in Pounds Per Inch; measurement relative to vacuum reference.
Calculating Maximum Air Consumption
Determining the maximum consumption level of an air compressor system is crucial for sizing the air tank for a fixed compressor. Ideally, the air tank should provide or exceed the maximum consumption level under ideal conditions. Accurate sizing minimizes pressure fluctuations, extends equipment lifespan, and ensures uninterrupted production processes.
In the formula used in the calculation process, t = V (p1 – p2) / C pa, the maximum air consumption is measured in SCFM and is represented by “C”. The formula is used to calculate how long the air tank will provide sufficient air within a certain pressure range. Here, V is the volume of the air tank, p1 is the starting pressure, p2 is the ending pressure, and C is the maximum air consumption required by the system.
To calculate maximum consumption, sum the air demand of each tool or device operating simultaneously. This process involves determining how much air each tool or device consumes over a given period, resulting in the system’s total air requirement.
